Description
Easily Connect a Subwoofer to Legacy Audio Components
Many integrated amplifiers and legacy stereo receivers lack line-level outputs, leaving enthusiasts without the ability to connect a powered subwoofer to their system.

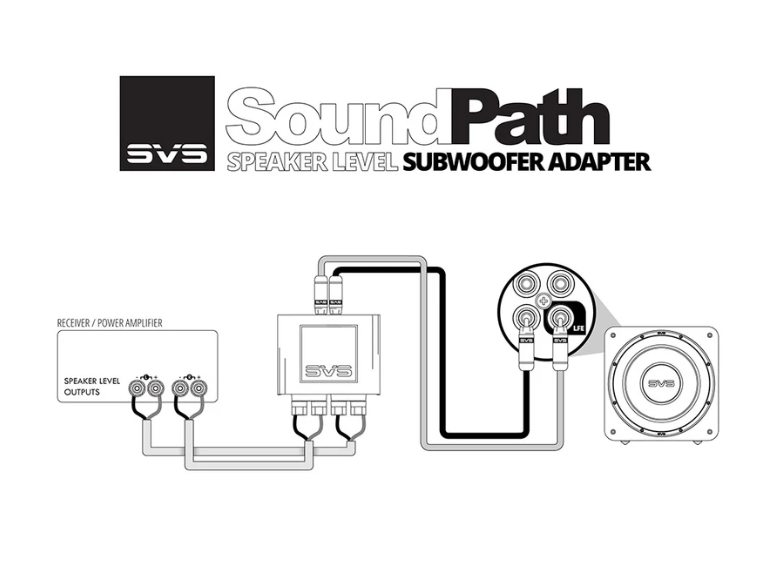

The SVS SoundPath Speaker Level Subwoofer Adapter elegantly solves this problem by stepping down the loudspeaker amplifier speaker-level voltage to RCA line-level voltage, allowing for a safe connection to a powered subwoofer with no loss of fidelity.
With a minimalist design and premium components, the SoundPath Speaker Level Subwoofer Adapter ensures pristine and transparent signal transfer to the subwoofer without compromise to any part of the playback system.
Features and Specifications:

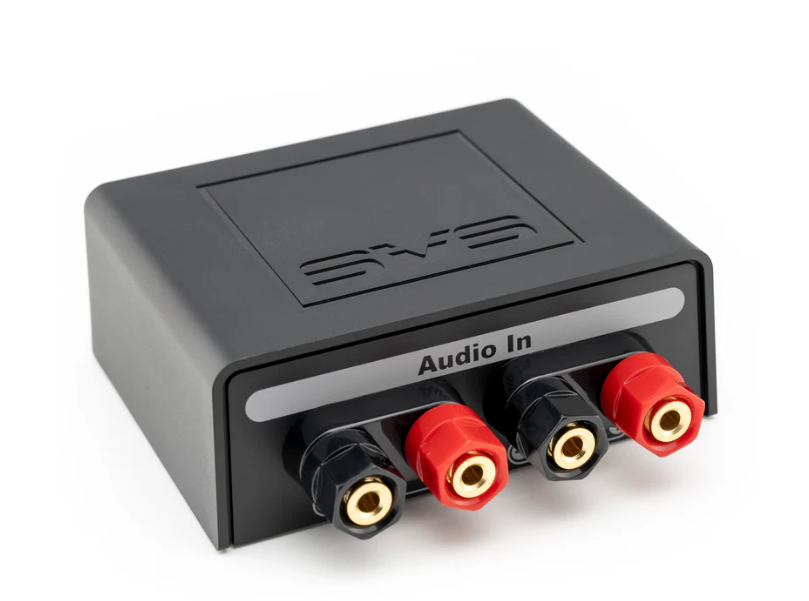

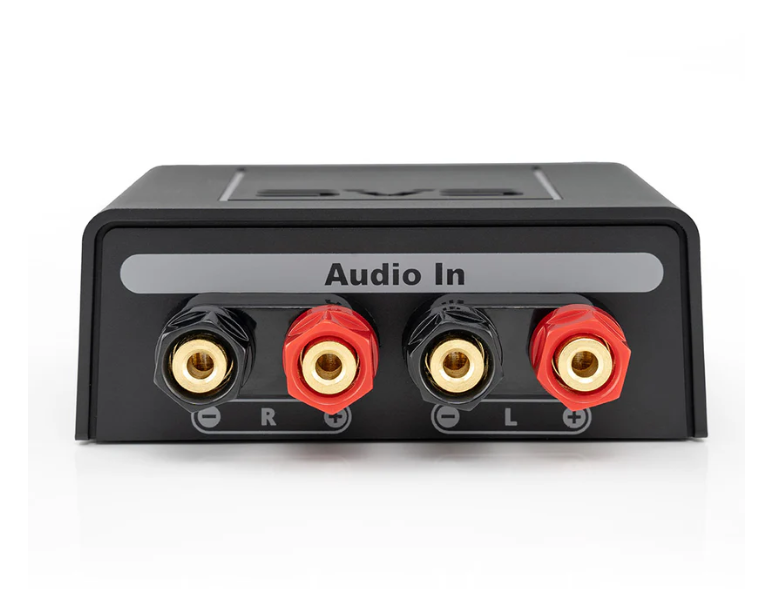

- Speaker-Level Inputs: Stereo Gold-Plated 5-Way Speaker-Level Binding Posts

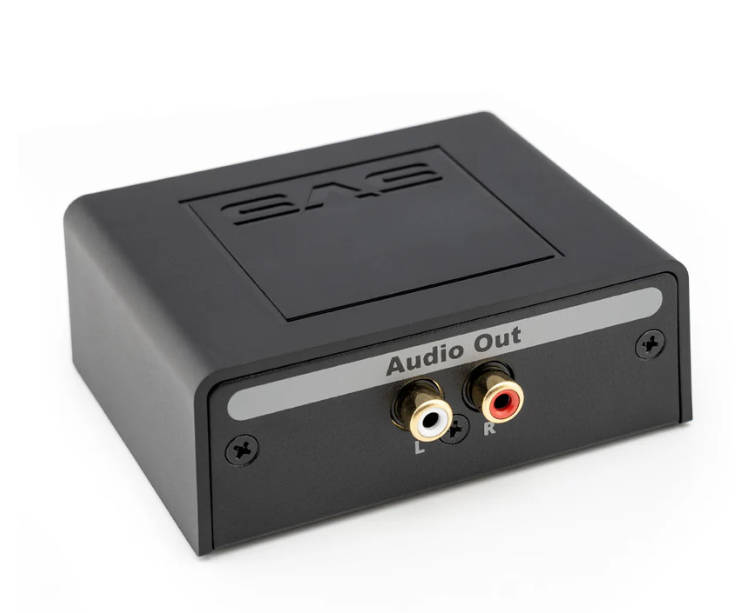

- Line-Level Outputs: Stereo Gold-Plated RCA Jacks
- Speaker-Level Input Impedance: 4.85 kΩ
- Line-Level Output Impedance: 150 Ω
- Voltage Attenuation: -30 dBV
- Power Handling: 500W RMS / 1,000W Peak
- Frequency Response: 10 Hz – 80 kHz (+/- 0.01 dB)
- THD+N @ 10V: <0.03% (10 Hz – 80 kHz)
- Dimensions: 1.5” (37 mm) H x 3.9” (99 mm) W x 4.1” (103 m) D
- Weight: 0.6 lb. (0.28 kg.)
