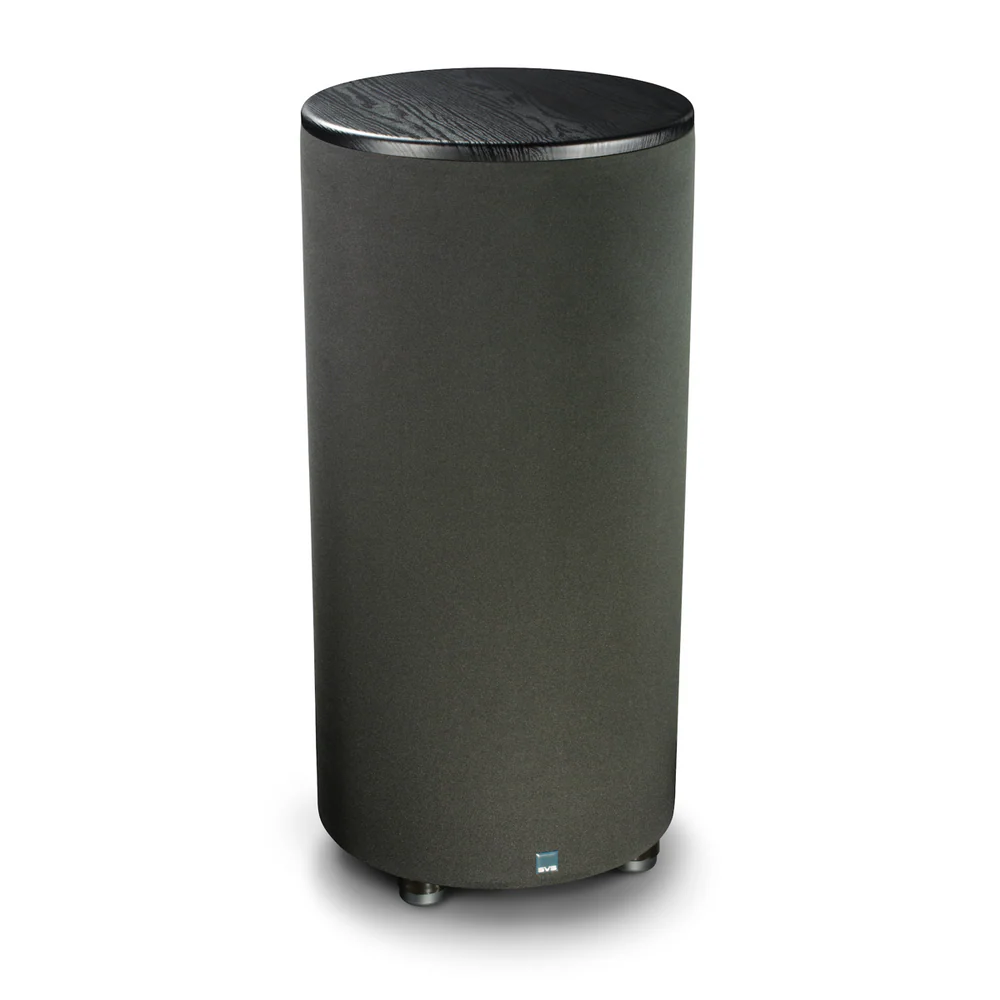

SVS PC-2000 Pro Subwoofer

Description

With a footprint measuring just 16.5-inches in diameter, the PC-2000 Pro subwoofer delivers unmatched performance per square-inch of floor space. Standing 34-inches tall with a 12-inch down-firing driver and 550 watts RMS, 1,500+ watts peak power DSP amplifier with discrete MOSFET output, the PC-2000 Pro uses vertical height to maintain a small footprint without sacrificing performance. Harnessing the massive power while ensuring unerring control and room-energizing bass response is a 50 MHz Analog Devices Audio DSP. PC-2000 Pro also features the SoundPath Subwoofer Isolation System and SVS subwoofer DSP smartphone app for convenient control of volume, DSP functions, custom presets and more.

1. Frequency Range:
   • 16Hz to 290Hz +/-3dB (standard mode)
   • 17Hz to 290Hz +/-3dB (sealed mode)
   • Deeper extension of 2-3 Hz in small to mid-size rooms.
2. Room Optimization:
   • Roll-off slope optimized for maximum room gain.
   • Designed for ideal performance 2 meters away from reflective structures (quasi-anechoic).
3. Cabinet and Finish:
   • Piano Gloss Black finish option.
   • Robust Medium Density Fiberboard (MDF) cabinet construction.
   • Dimensions: 34.3” H X 16.6” Diameter.
   • Shipped Dimensions: 37.9” H X 18.8” W X 19.7” D.
   • Weight (unboxed): 47.4lbs, Shipped Weight: 57.9lbs.
4. Driver Configuration:
   • Down-firing 12-inch high-excursion SVS driver.

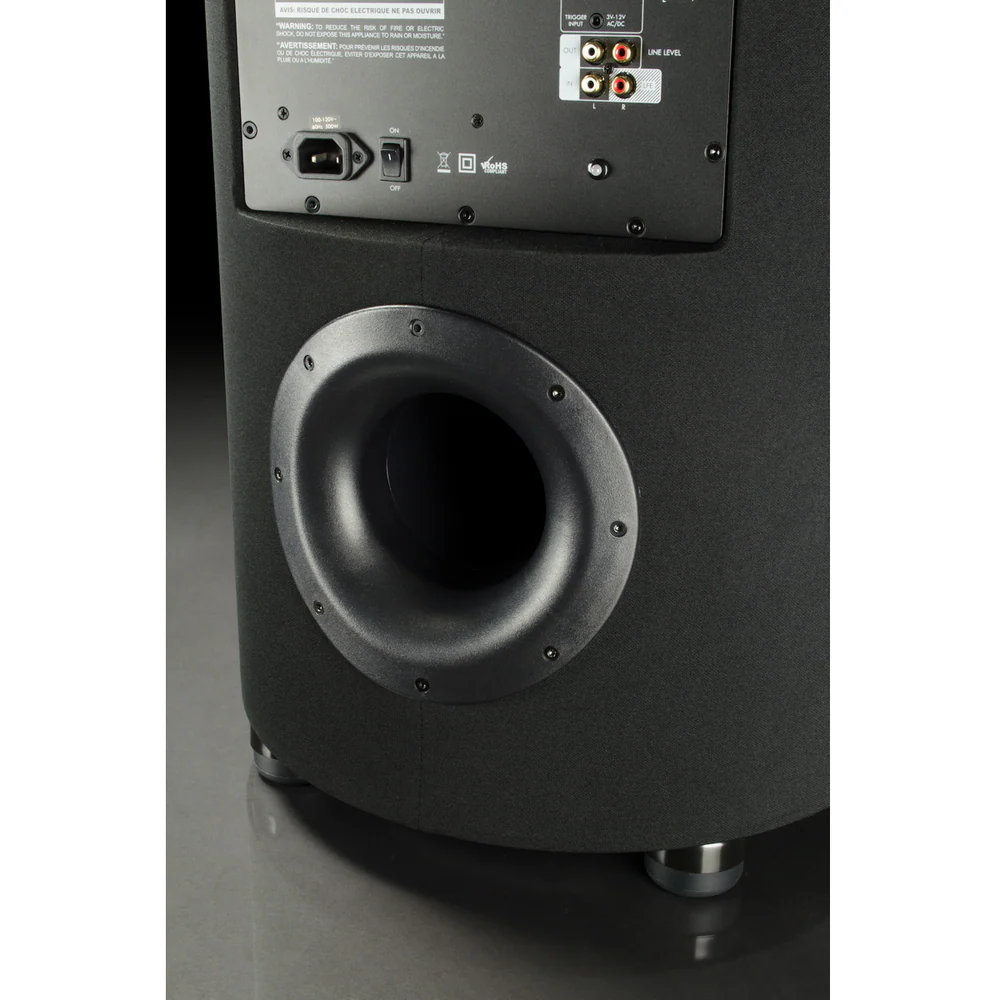

   • Rear-firing 4-inch port.

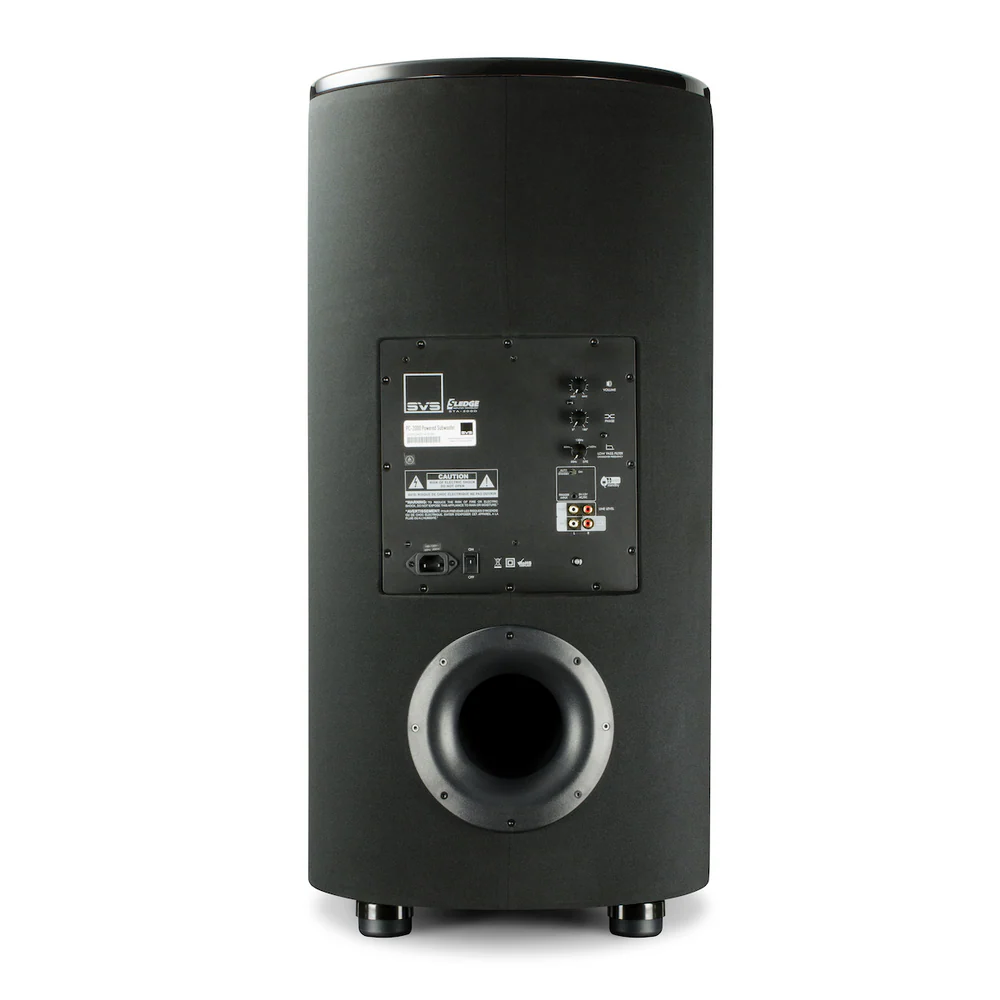

   • Rear-mounted amplifier with Intelligent Control Interface (ICI).
5. Driver Specifications:
   • All-new proprietary 12-inch high-excursion SVS 2000 Pro subwoofer driver with overhung motor.
   • Dual-layer high purity copper voice coil for maximum magnetics and efficiency.
   • Two massive toroidal ferrite magnets for unparalleled magnetic force.
   • Premium powder-coated basket, FEA-optimized for rigidity and energy transference.
   • 12-inch 1050 aluminum vented cone for a light, ridged, and neutral radiating surface.
   • Precision machined motor elements and low carbon vented steel for superior cooling.
6. Electrical Features:
   • Impedance rating: Not specified.
   • SPL levels: Not specified.
7. Connectivity:
   • Dual balanced 24-strand silver-plated Litz wire high-temperature leads.
   • Nickle-plated high-tension spring terminals.
   • Proprietary injection-molded gasket and extreme-excursion surround for accuracy.
8. Motor Technology:
   • Aluminum shorting sleeve to reduce gap induction and distortion.
   • Dual toroidal ferrite magnets for high magnetic force.
9. Enhanced Thermal Management:
   • Overhung motor design for improved thermal conductivity.
   • Premium-grade polyimide impregnated fiberglass former for maximum thermal conductivity.
10. User-Friendly Design:
    • Intelligent Control Interface (ICI) for easy customization.
    • Space-efficient cylindrical design for versatile placement options.
